Teno Handy Talky Dual Band TN-UV-E5

Rp 930.000,00

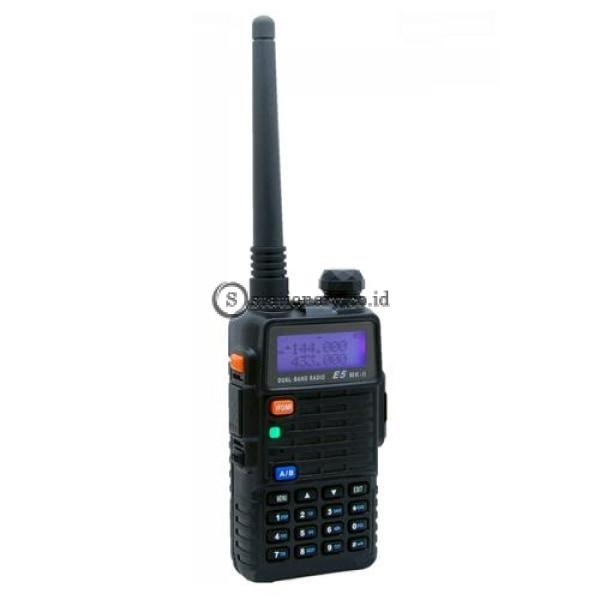

Teno Handy Talky Dual Band TN-UV-E5 adalah handy talky (HT) dengan Double Frequency Range VHF : 1 36-174Mhz and UHF: 400 - 470MHz, 2.5kHzl/5kt1zl/6.z5kHzl/1 AkHzl/12.5kHzJ/25kHz, 5 Watt, 128 Channel Fitur Dual Band (VHF/UHF) Dual Display Channel Name CTCSS / DCS Wide / Narrow Bandwith Selectable 128 Channel Scan FM Radio...

Teno Handy Talky Dual Band TN-UV-E5 adalah handy talky (HT) dengan Double Frequency Range VHF : 1 36-174Mhz and UHF: 400 - 470MHz, 2.5kHzl/5kt1zl/6.z5kHzl/1 AkHzl/12.5kHzJ/25kHz, 5 Watt, 128 Channel

Fitur
  • Dual Band (VHF/UHF)
  • Dual Display
  • Channel Name
  • CTCSS / DCS
  • Wide / Narrow Bandwith Selectable
  • 128 Channel
  • Scan
  • FM Radio
Frekuensi
  • VHF : 136-174Mhz
  • UHF: 400-470MHz
Memory Channel

128

Channel Spacing

2.5/5/6.25/10/12.5/20/25/50 KHz

Dimensi

Without antenna & battery: 58 x 110 x 32 mm (W x H x D)

Lain-lain

-Transmitter

  • Power Output: 5 Watts/1 Watts
  • Modulation:16K?F3E /8K?F3E
  • Spurious and Harmonious:-36dBm<1GHz -30dBm>1GHz
  • FM Noise: 45dB(N)/42dB(W)
  • Adjacent Channel Power: 60dB
  • Audio Distortion: 0,05

-Receiver

  • Sensitivity: (12dB SINAD) 0.2uV
  • Squelch Selectivity: 0.15uV
  • Spurious Response Rejection: -60dB
  • Adjacent Channel Selectivity: =65dB
  • Audio Power Output: 500mW
  • Audio Distortion: =10%

-Battery Type: 1800 mAh (Lithium Battery)

-Antenna Impedance: 50 Ohm

MAIN FUNCTION

  • Dual Band (VHF/UHF)
  • Dual Display
  • Channel Name
  • CTCSS / DCS
  • Wide / Narrow Bandwith Selectable
  • 128 Channel
  • Scan
  • FM Radio
