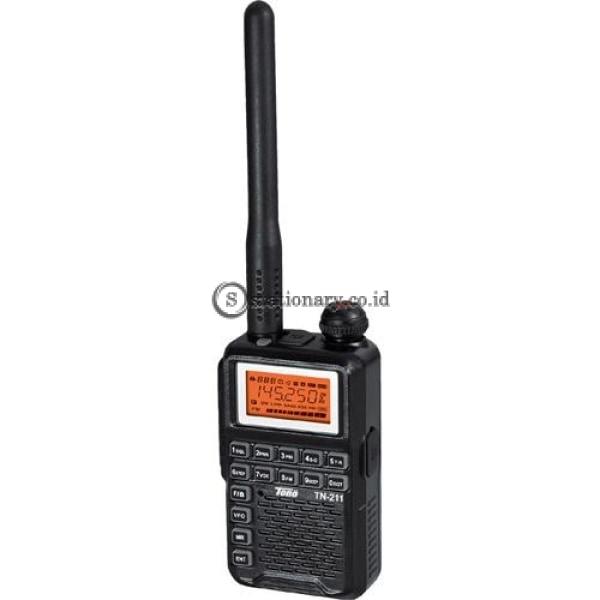

Teno Handy Talky TN-211

Rp 710.000,00

Teno Handy Talky TN-211 adalah handy talky (HT) dengan Frequency Range VHF: 136-174 Mhz, 25kHz/12.5kHz - 5 Watt, 108 Channel Fitur Compact and easy to operate Voice scrambler COMP function Dual watching function CTCSS/DCS scanning Full frequency coverage Battery capacity management Progammable multifunction key PC programmable Repeater offset USB charging...

Teno Handy Talky TN-211 adalah handy talky (HT) dengan Frequency Range VHF: 136-174 Mhz, 25kHz/12.5kHz - 5 Watt, 108 Channel

Fitur
  • Compact and easy to operate
  • Voice scrambler
  • COMP function
  • Dual watching function
  • CTCSS/DCS scanning
  • Full frequency coverage
  • Battery capacity management
  • Progammable multifunction key
  • PC programmable
  • Repeater offset
  • USB charging
  • End of tone
  • Chinese and English voice prompt
  • Emergency alert
  • Channel name editing
  • VOX function
  • Wide/Narrow Band(25kHz/12.5kHz)
  • 1750Hz tone
  • Power-on protection function
  • FM 25 radio stations memory
  • Transmitter time-out timer
  • Priority channel scan
  • Automatic power off(APO)
  • 0-9 grades voice sensitivity
Frekuensi
  • 136-174MHz

Memory Channel

108

Channel Spacing

2.5/5/6.25/10/12.5/20/25/50 KHz

Dimensi

84 x 48 x 26 mm (W x H x D)

Lain-lain

  • Frequency Stability: ±2.5ppm
  • Antenna: High gain antenna
  • Antenna Impedance: 50?
  • Operating Voltage: DC 3.6V
  • Mode of operation: Simple or semi-duplex
  • Transmitter

Output power: ≥3W(H) ≥0.5W(L)

Modulation Mode: 16k¦µF3E / 11k¦µF3E

Maximum deviation: <5kHz(Wide) / <2.5kHz(Narrow)

Spurious Radiation: <7¦ÌW

Adjacent Ch. power: ≤-65dB(Wide) / ≤-60dB(Narrow)

Pre-emphasis characteristics: 6dB

Current: ≤1.6A(5W)

CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity: 8-12mv

Intermediation distortion: <10%

Receiver

RF Sensitivity: -122dbm(12db SINAD)

Audio power: ≥0.5W

Audio Distortion: <10%

Intermediation:

Selectivity:

Spurious Rejection:

Blocking: ≥85dBuv/m

MAIN FUNCTION

  • Compact and easy to operate
  • Chinese and English voice prompt
  • Voice scrambler
  • Emergency alert
  • COMP function
  • Channel name editing
  • Dual watching function
  • VOX function
  • CTCSS/DCS scanning
  • Wide/Narrow Band(25kHz/12.5kHz)
  • Full frequency coverage
  • 1750Hz tone
  • Battery capacity management
  • Power-on protection function
  • Progammable multifunction key
  • FM 25 radio stations memory
  • PC programmable
  • Transmitter time-out timer
  • Repeater offset
  • Priority channel scan
  • USB charging
  • Automatic power off(APO)
  • End of tone
  • 0-9 grades voice sensitivity
