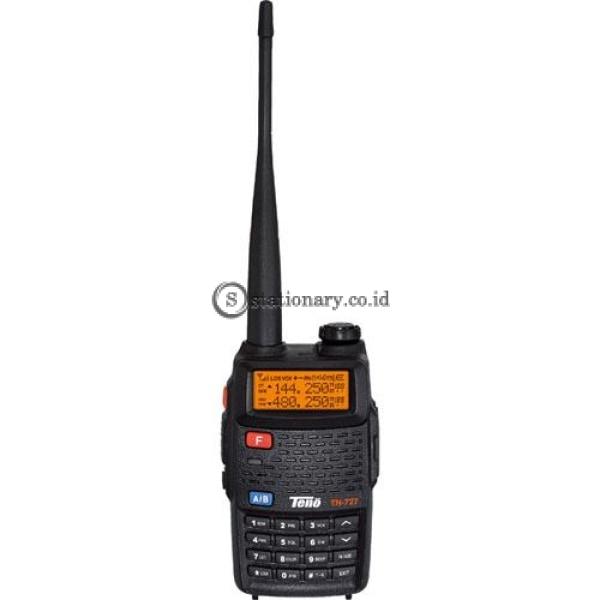

Teno Handy Talky TN-727

Rp 998.000,00

Teno Handy Talky TN-727 adalah handy talky (HT) dengan Double Frequency Range VHF : 1 36-174Mhz and UHF: 400 - 520MHz, 5 Watt, 128 Channel Fitur Dual band, dual display, dual standby 8 groups Scrambler Channel name display and setting 128 groups channels storage Wide/Narrow Band (25kHz/12.5kHz) Repeater offset function...

Teno Handy Talky TN-727 adalah handy talky (HT) dengan Double Frequency Range VHF : 1 36-174Mhz and UHF: 400 - 520MHz, 5 Watt, 128 Channel

Fitur
  • Dual band, dual display, dual standby
  • 8 groups Scrambler
  • Channel name display and setting
  • 128 groups channels storage
  • Wide/Narrow Band (25kHz/12.5kHz)
  • Repeater offset function
  • Reapter shift direction
  • Priority transmit selectable
  • LED display mode
  • 1750Hz tone
  • Receive saving function
  • Power-on display
  • Power-on message
  • PC programmable
  • A/B band independent operation
  • VFO step function
  • Multi-display mode
  • FM radio and 25 stations storage
  • 0-9 grades VOX selectable
  • CTCSS/DCS and scanning
  • PTT & ANI ID
  • Voice companding
  • Keypad beeper setting
  • Dual watch/monitor
  • Auto keypad lock
  • High/Low TX power selectable
  • Transmitter time-out timer
  • Tri-color background light selectable
Frekuensi
  • VHF : 136-174 Mhz
  • UHF: 400-520 MHz
Memory Channel
  • 128
Channel Spacing
  • Double Frequency Range VHF : 1 36-174Mhz and UHF: 400 - 520MHz, 5 Watt, 128 Channel
Dimensi
  • 110 x 58 x 32 mm (W x H x D)

Lain-lain

Items TN-727
General

  • Frequency Range:
  • 70-108MHz(FM Receive only)
  • 136-174MHz
  • 400-520MHz
  • Channel No. 128
  • Frequency Stability: ±2.5ppm
  • Antenna: High gain antenna
  • Antenna Impedance: 50Ω
  • Operating Voltage : DC 7.2V
  • Mode of operation Simple or semi-duplex
  • Dimension?W x H x D?: 110 x 58 x 32 mm
  • Weight : 250g?including battery, antenna?


Transmitter

  • Output power ≥4W(H) ≥0.5W(L)
  • Modulation Mode 16kΦF3E / 11kΦF3E
  • Maximum deviation ?5kHz(Wide) / ?2.5kHz(Narrow)
  • Spurious Radiation ?7μW
  • Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
  • Pre-emphasis characteristics 6dB
  • Current ≤1.6A(5W)
  • CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
  • Intermediation sensitivity 8-12mv
  • Intermediation distortion ?10%

Receiver

  • RF Sensitivity -122dbm(12db SINAD)
  • Audio power ≥0.5W
  • Audio Distortion ≤10%
  • Intermediation ≤-65dB(Wide) / ≤-60dB(Narrow)
  • Selectivity ≤-65dB(Wide) / ≤-60dB(Narrow)
  • Spurious Rejection ≤-65dB
  • Blocking ≥85dBuv/m

MAIN FUNCTIO

MAIN FUNCTION

  • Dual band, dual display, dual standby
  • A/B band independent operation
  • 8 groups Scrambler
  • VFO step function
  • Channel name display and setting
  • Multi-display mode
  • 128 groups channels storage
  • FM radio and 25 stations storage
  • Wide/Narrow Band(25kHz/12.5kHz)
  • 0~9 grades VOX selectable
  • Repeater offset function
  • CTCSS/DCS and scanning
  • Reapter shift direction
  • PTT & ANI ID
  • Priority transmit selectable
  • Voice companding
  • LED display mode
  • Keypad beeper setting
  • 1750Hz tone
  • Dual watch/monitor
  • Receive saving function
  • Auto keypad lock
  • Power-on display
  • High/Low TX power selectable
  • Power-on message
  • Transmitter time-out timer
  • PC programmable
  • Tri-color background light selectable
