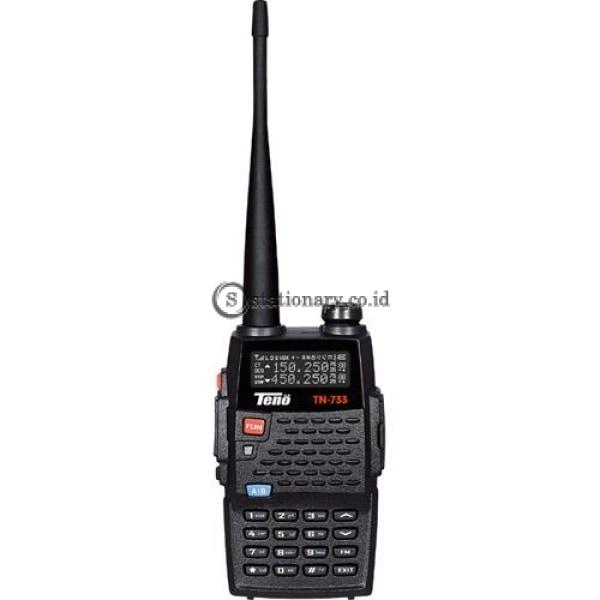

Teno Handy Talky TN-733

Rp 1.072.000,00

Teno Handy Talky TN-733 adalah handy talky (HT) dengan Tri-band, Frequency Range VHF : 136-174MHz, UHF: 350 - 390MHz, UHF: 400-470MHz, FM Radio Fitur Tri-band, dual display, dual standby Channel name display and setting 128 x 2 groups channels storage Wide/Narrow Band (25 kHz/12.5 kHz) CTCSS/DCS and scanning 1750 Hz...

Teno Handy Talky TN-733 adalah handy talky (HT) dengan Tri-band, Frequency Range VHF : 136-174MHz, UHF: 350 - 390MHz, UHF: 400-470MHz, FM Radio

Fitur
  • Tri-band, dual display, dual standby
  • Channel name display and setting
  • 128 x 2 groups channels storage
  • Wide/Narrow Band (25 kHz/12.5 kHz)
  • CTCSS/DCS and scanning
  • 1750 Hz tone
  • VFO step function
  • High/Low TX power selectable
  • Repeater offset function
  • FM radio and 25 stations storage
  • LED display mode
  • Dual watch/monitor
  • Power-on message
  • Transmitter time-out timer
  • PTT & ANI ID
  • Auto keypad lock
  • Tri-color background light selectable
  • PC programmable
Frekuensi
  • VHF : 136-174 MHz
  • UHF: 350-390 MHz
  • UHF: 400-470 MHz
Memory Channel
  • 128 x 2
Channel Spacing
  • Tri-band, Frequency Range VHF : 136-174MHz, UHF: 350 - 390MHz, UHF: 400-470MHz, FM Radio
Dimensi
  • 100 x 52 x 32 mm

Lain-lain

Items TN-733

General

  • Frequency Range 70-108MHz(FM Receive only)
  • 136-174MHz
  • 350-390MHz
  • 400-470MHz
  • Channel No. 128*2
  • Frequency Stability ±2.5ppm
  • Antenna High gain antenna
  • Antenna Impedance 50Ω
  • Operating Voltage DC 7.2V
  • Mode of operation Simple or semi-duplex
  • Dimension?W x H x D? 100 x 52 x 32 mm
  • Weight 250g?including battery, antenna?

Transmitter

  • Output power ≥4W(H) ≥0.5W(L)
  • Modulation Mode 16kΦF3E / 11kΦF3E
  • Maximum deviation ?5kHz(Wide) / ?2.5kHz(Narrow)
  • Spurious Radiation ?7μW
  • Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
  • Pre-emphasis characteristics 6dB
  • Current ≤1.6A(5W)
  • CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
  • Intermediation sensitivity 8-12mv
  • Intermediation distortion ?10%

Receiver

  • RF Sensitivity -122dbm(12db SINAD)
  • Audio power ≥0.5W
  • Audio Distortion ≤10%
  • Intermediation ≤-65dB(Wide) / ≤-60dB(Narrow)
  • Selectivity ≤-65dB(Wide) / ≤-60dB(Narrow)
  • Spurious Rejection ≤-65dB
  • Blocking ≥85dBuv/m

MAIN FUNCTION

  • Tri-band, dual display, dual standby
  • FM radio and 25 stations storage
  • Channel name display and setting
  • LED display mode
  • 128*2 groups channels storage
  • Dual watch/monitor
  • Wide/Narrow Band(25kHz/12.5kHz)
  • Power-on message
  • CTCSS/DCS and scanning
  • Transmitter time-out timer
  • 1750Hz tone
  • PTT & ANI ID
  • VFO step function
  • Auto keypad lock
  • High/Low TX power selectable
  • Tri-color background light selectable
  • Repeater offset function
  • PC programmable
